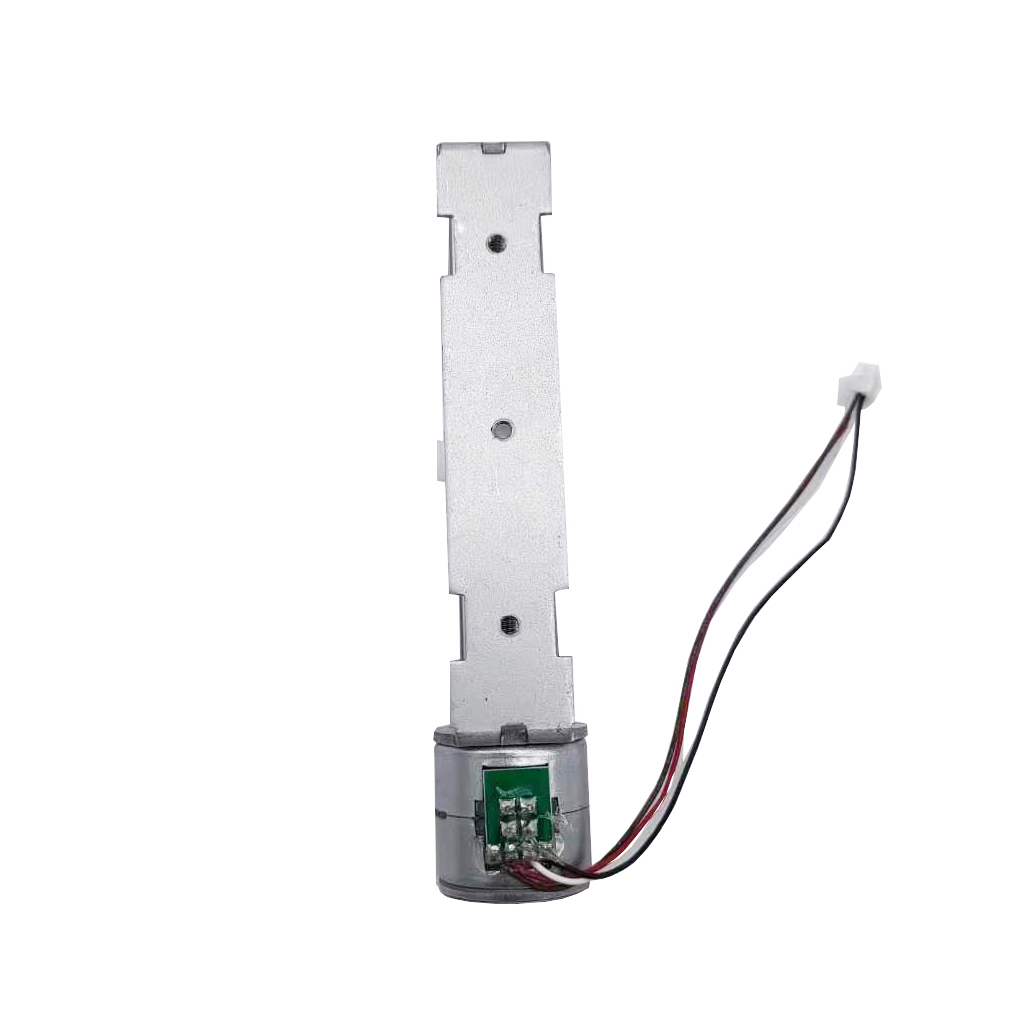

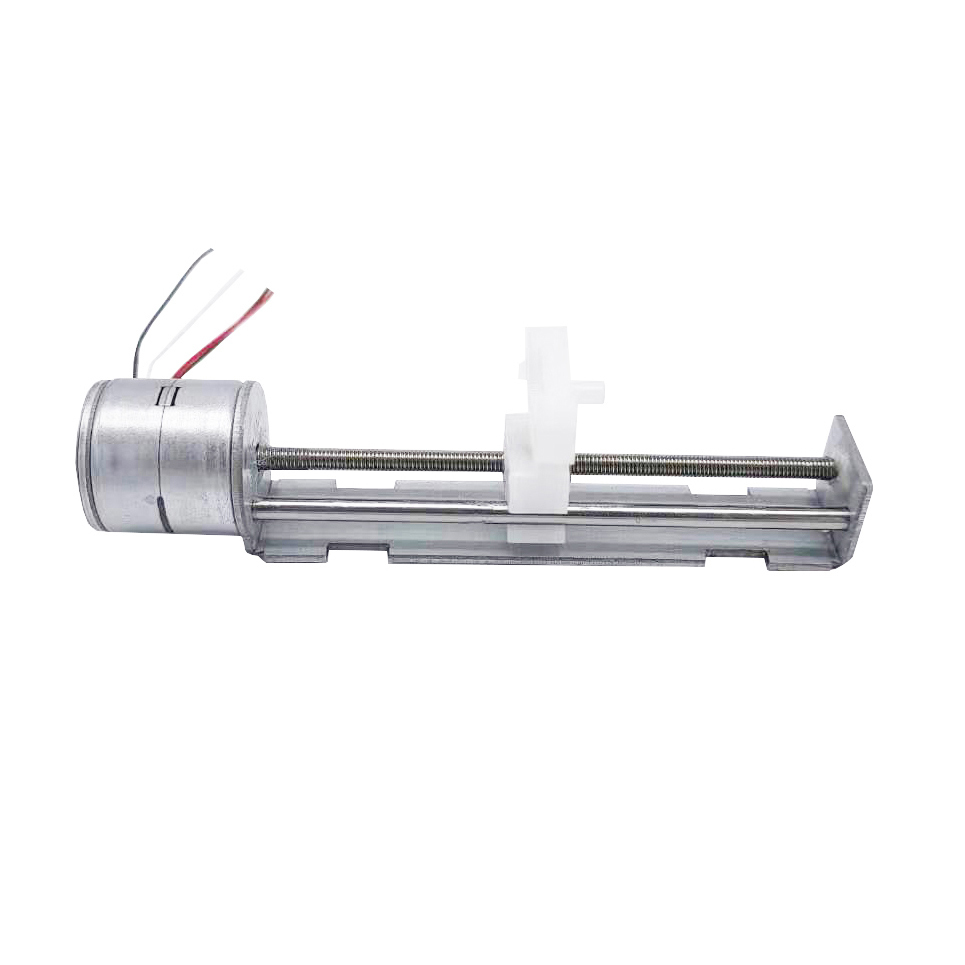

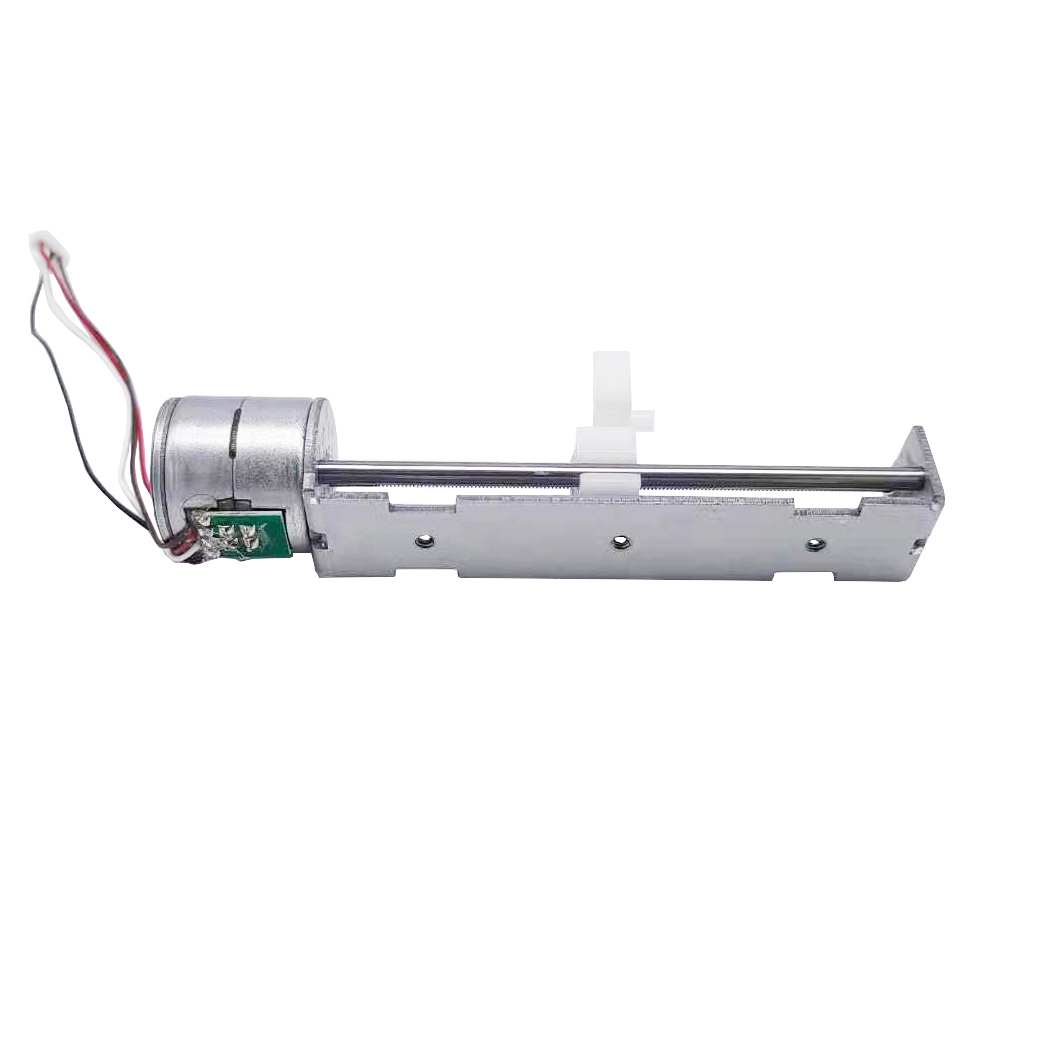

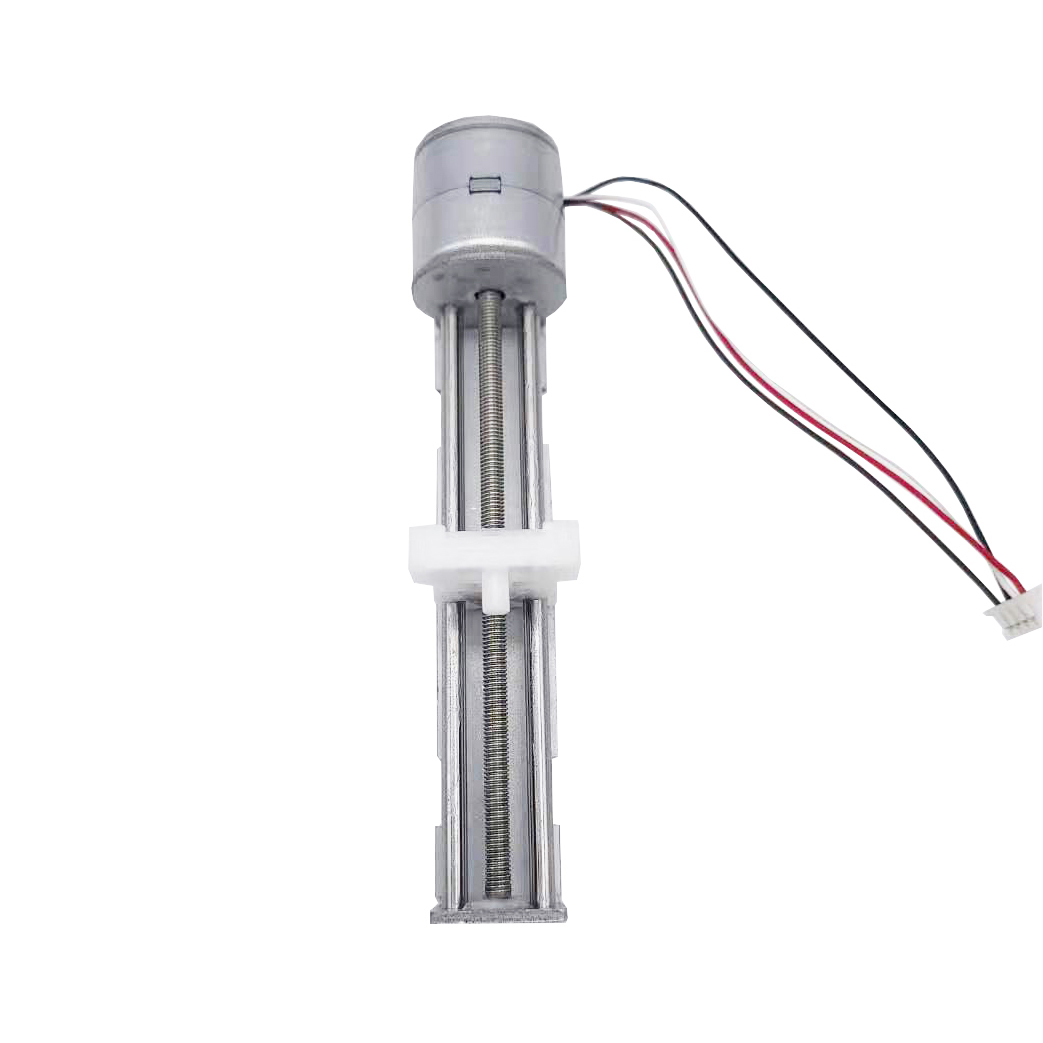

2 Phase 18 Degree 20mm Linear Stepper Motor with Plastic Slider

  • 2 Phase 18 Degree 20mm Linear Stepper Motor with Plastic Slider
  • 2 Phase 18 Degree 20mm Linear Stepper Motor with Plastic Slider
  • 2 Phase 18 Degree 20mm Linear Stepper Motor with Plastic Slider
  • 2 Phase 18 Degree 20mm Linear Stepper Motor with Plastic Slider
Place of Origin Jiangsu, China
Nombre de la marca VIC-TECH
Certificación RoHS
Model Number SM20-63L
Minimum Order Quantity 2
Precio $4.31-15

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Motor diameter 20mm Rated Voltage 12 V DC
Coil Resistance 30±10% ohm/PHASE(20℃) No.Of Phases 2 Phases
Step Angle 18°/Step Excitation Method 1-2 Phase Excitation
Drive Mode Bipolar Drive Pull-out-Thrust More Than 500 g AT 700PPS
Max Response Frequency More Than 1600 PPS Max Starting Frequency More Than 1100 PPS
Insulation Class CLASS E FOR COILS Insulation Strength 100V AC FOR ONE SECOND
Insulation Resistance 50mΩ(DC 500 V) Operating Temperature -0~55℃
Effective Stroke 63mm
Resaltar

2 phase linear stepper motor

,

18 degree stepper motor with slider

,

20mm plastic slider stepper motor
Deja un mensaje
Descripción de producto
2 Phase 18 Degree Step Angle Diameter 20mm Linear Actuator Stepper Motor with Plastic Slider
Product Attributes
Attribute Value
Warranty Other
Phase 2
Type Permanent Magnet
Current / Phase 270mA
Product Description
2 Phase 18 Degree 20mm Linear Stepper Motor with Plastic Slider 0 2 Phase 18 Degree 20mm Linear Stepper Motor with Plastic Slider 1
This linear stepper motor features a support screw slider with diameter 20mm, step angle 18 degrees, and 2 phases 4 wires configuration. It offers an effective stroke of 63mm with screw diameter 3mm and pitch 0.5mm. Recommended drive voltage is 12V.
Our team brings over 20 years of experience in stepper motor design, development, and production. We can develop products and provide auxiliary design services to meet specific customer requirements.
Design Layout (Unit:mm)
2 Phase 18 Degree 20mm Linear Stepper Motor with Plastic Slider 2
Specification
Model No.
SM20-63L
Motor diameter
20mm
Rated Voltage
12 V DC
Coil Resistance
30±10% ohm/PHASE(20℃)
No.Of Phases
2 Phases
Step Angle
18°/Step
Excitation Method
1-2 Phase Excitation
Drive Mode
Bipolar Drive
Pull-out-Thrust
More Than 500 g AT 700PPS
Max Response Frequency
More Than 1600 PPS
Max Starting Frequency
More Than 1100 PPS
Insulation Class
CLASS E FOR COILS
Insulation Strength
100V AC FOR ONE SECOND
Insulation Resistance
50mΩ(DC 500 V)
Operating Temperature
-0~55℃
Packing & Delivery
2 Phase 18 Degree 20mm Linear Stepper Motor with Plastic Slider 3
Selling Units: Single item plastic box inner, outer paper box. Package: single carton packing, 100 - 1000 pieces per box. Lead Time: 30 Days After Deposit.
Company Profile
2 Phase 18 Degree 20mm Linear Stepper Motor with Plastic Slider 4 2 Phase 18 Degree 20mm Linear Stepper Motor with Plastic Slider 5 2 Phase 18 Degree 20mm Linear Stepper Motor with Plastic Slider 6
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in producing micro motors and accessories since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we provide custom design and development services. Through our commitment to honesty, dependability and quality, Vic-Tech Motor continues to pioneer in global markets by seeking international partners.
